Concealed fixing –

for standard systems and special designs

Facade design with hidden fasteners

Ventilated facades have long become the system of choice in structural facade construction. Not only do they offer many structural-physical advantages that ensure a balanced indoor climate (permanent removal of humidity, quick drying of damp exterior walls, etc.), they are also easy to install and highly durable; and they enable diverse designs, which is important to architects and house builders. This versatility begins with the choice of cladding, which includes almost any material from brick to aluminium composite panels.

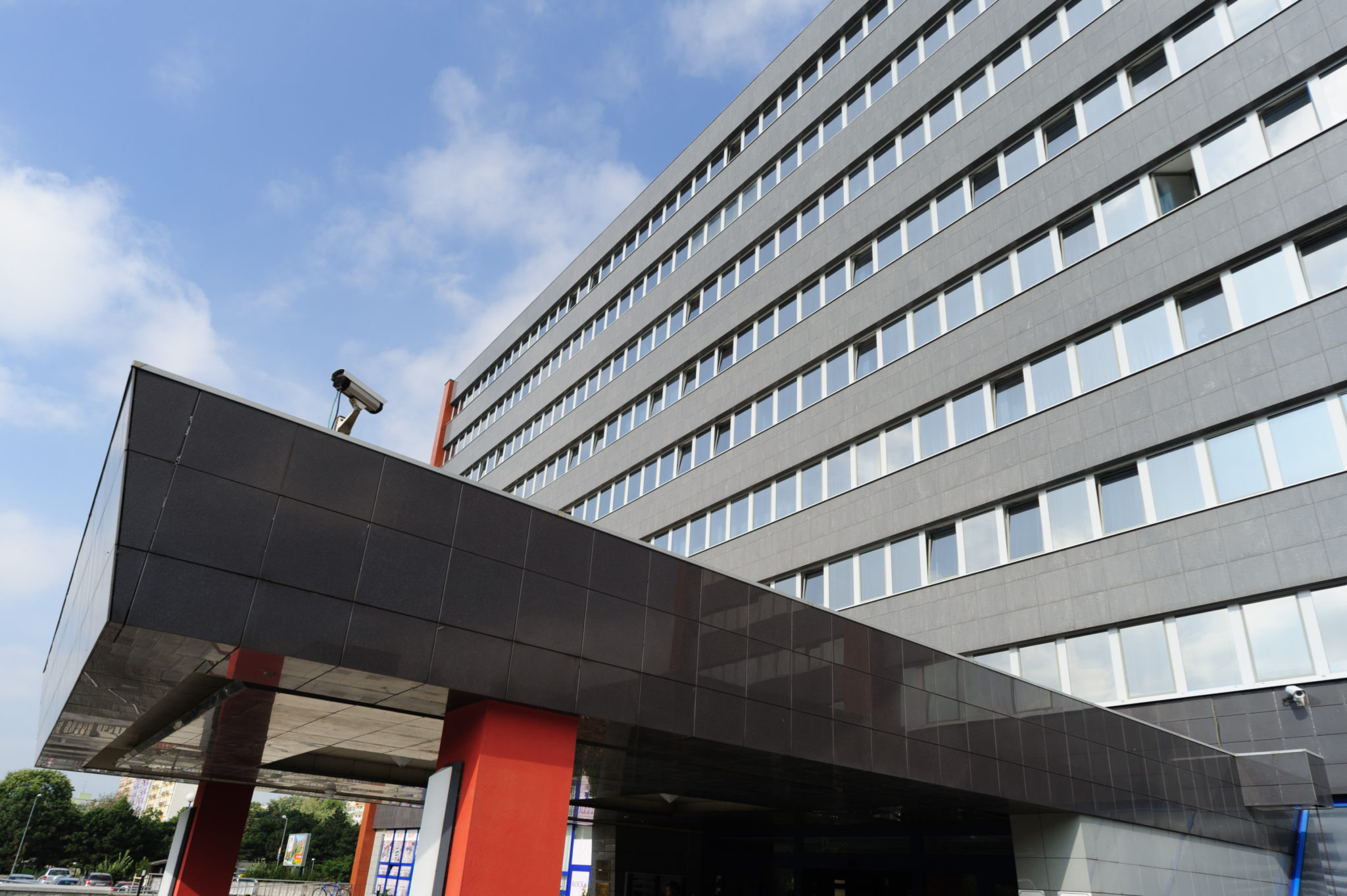

The certified SPIDI® facade system makes it possible to respond perfectly to the requirements of architects, planners and customers. There are two options for mounting the cladding material: a concealed fixed ventilated facade, where the cladding is installed “invisibly” on the subconstruction, or a visible fixed ventilated facade. The SPIDI® facade system is suitable for all types of rear-ventilated facade – regardless of fastening, facade cladding material and building height. The SPIDI® facade system can be used to create highly aesthetic facades where the fixings remain invisible from the outside. With SPIDI®, vertical and horizontal profiles are easy, quick and convenient to install.

System overview SPIDI® max and light

Slavonia´s patented wall bracket is available as SPIDI® max (made of aluminium, steel or stainless steel), or SPIDI® light (made of aluminium).

Those who wish their facade panels to be installed with hidden fixings will find various options for implementation with the certified SPIDI® facade systems:

SPIDI® max – our classic all-rounder

This wall bracket comes in different materials such as high-strength aluminium, steel of the highest corrosion protection level, or stainless steel.

Für mehr Informationen Bild antippen.

VMB-AFS1

HANGER SYSTEM
2-layer substructure

FACADE CLADDING:
Fibre cement, stoneware, glassfibre reinforced concrete, HPL panels, ceramics, natural stone, coreboards, laminated glass

VMB-EHS1

HANGER SYSTEM
2-layer substructure

FACADE CLADDING:
Composite wood panels

VMB-GK1

CLAMP FIXING
1-layer substructure with stainless steel clamps

FACADE CLADDING:
Stoneware, natural stone

VMB-GK2

SLIP RAIL
1-layer substructure

FACADE CLADDING:
Terracotta, brick

VGB-1

ADHESIVE FIXING
1-layer substructure

FACADE CLADDING:
Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, ceramics, natural stone

VGB-2

ADHESIVE FIXING
2-layer substructure

FACADE CLADDING:
Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, ceramics, natural stone

VMB-SZ20

SZ20 SYSTEM
1-layer substructure

FACADE CLADDING:
Aluminium composite material

VMB-S1

RIVETED/SCREWED
1-layer substructure

FACADE CLADDING:
Aluminium & steel siding

VMB-S2

RIVETED/SCREWED
1-layer substructure

FACADE CLADDING:
Aluminium & steel siding

VMB-BZ1.1

BOLT HANGER
1-layer vertical substructure T-profile

FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes

VMB-BZ1.2

BOLT HANGER
1-layer vertical substructure Y-profile

FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes

VMB-BZ2.1

HANGER SYSTEM
2-layer substructure U-profile

FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes

SPIDI® light – for simple requirements

This wall bracket is made of high-strength aluminium.

VMB-LAFS1

HANGER SYSTEM
2-layer substructure

FACADE CLADDING:
Fibre cement, stoneware, glassfibre reinforced concrete, HPL panels, ceramics, natural stone, coreboards, laminated glass

VMB-LEHS1

HANGER SYSTEM
2-layer substructure

FACADE CLADDING:
Composite wood panels

VMB-LGK1

CLAMP FIXING
1-layer substructure with stainless steel clamps

FACADE CLADDING:
Stoneware, natural stone

VMB-LGK2

SLIP RAIL
1-layer substructure

FACADE CLADDING:
Terracotta, brick

VGB-L1

ADHESIVE FIXING
1-layer substructure

FACADE CLADDING:
Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, ceramics, natural stone

VGB-L2

ADHESIVE FIXING
2-layer substructure

FACADE CLADDING:
Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, ceramics, natural stone

VMB-LSZ20

SZ20 SYSTEM
1-layer substructure

FACADE CLADDING:
Aluminium composite material

VMB-LS1

RIVETED/SCREWED
1-layer substructure

FACADE CLADDING:
Aluminium & steel siding

VMB-LS2

RIVETED/SCREWED
1-layer substructure

FACADE CLADDING:
Aluminium & steel siding

VMB-LBZ1.1

BOLT HANGER
1-layer vertical substructure T-profile

FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes

VMB-LBZ1.2

BOLT HANGER
1-layer vertical substructure Y-profile

FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes

VMB-LBZ2.1

HANGER SYSTEM
2-layer substructure U-profile

FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes

The design and material for the facade cladding can be chosen freely: aluminium composite material, fibre cement, stoneware, glass fibre reinforced concrete, HPL (high pressure laminate) panels, ceramics, natural stone, mounting plates, laminated glass, aluminium and steel sheets or cassettes, plaster-base boards, aluminium/steel siding, terracotta or bricks.

Get expert advice on facade design and rely on the experience and profound knowledge of SPIDI® specialists. This will help you find the perfect solution for your facade.

For more information about our SPIDI® facade systems, see downloads.
